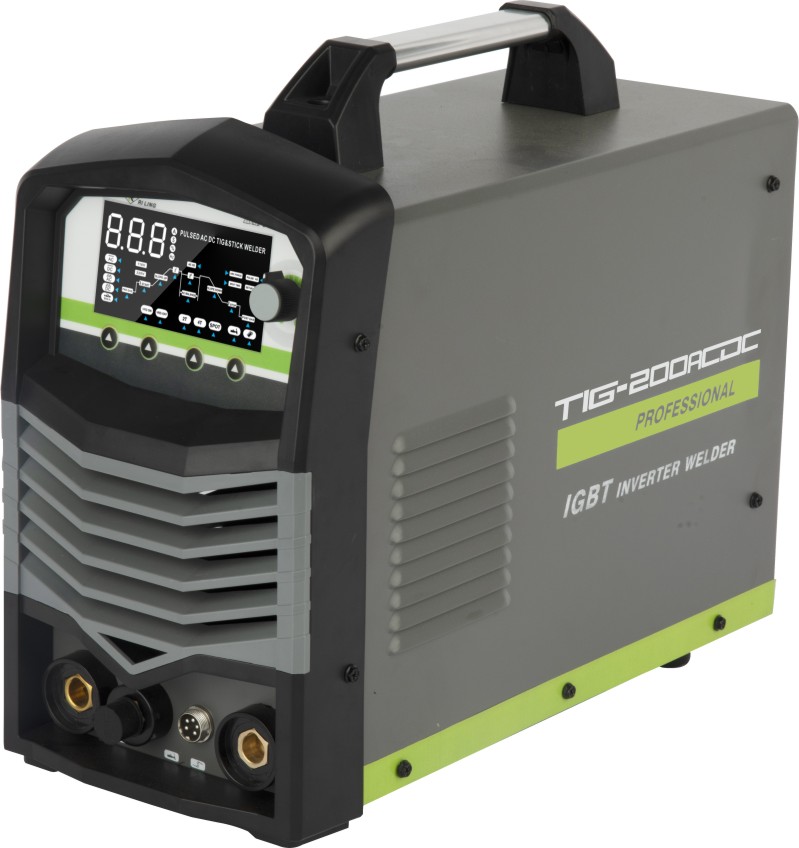

INVERTER IGBT AC/DC TIG/MMA WELDING MACHINE

1.This machine is color display screen
2.This machine pulsed AD/DC TIG&stick welder
3.This machine is digital technology includes "TIGPULSED TIGMMA and remote control function
4.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
5.Inverter technique makes the welder run in high utilization rate of power.
6.Specially used to weld Aluminum And its alloy,copper and its alloy,stainless steel,titaninum and its alloy,and all kinds of metals.
7.Easy to strike the ARC,good welding appearance,simple electric circuit.

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

1746605962405

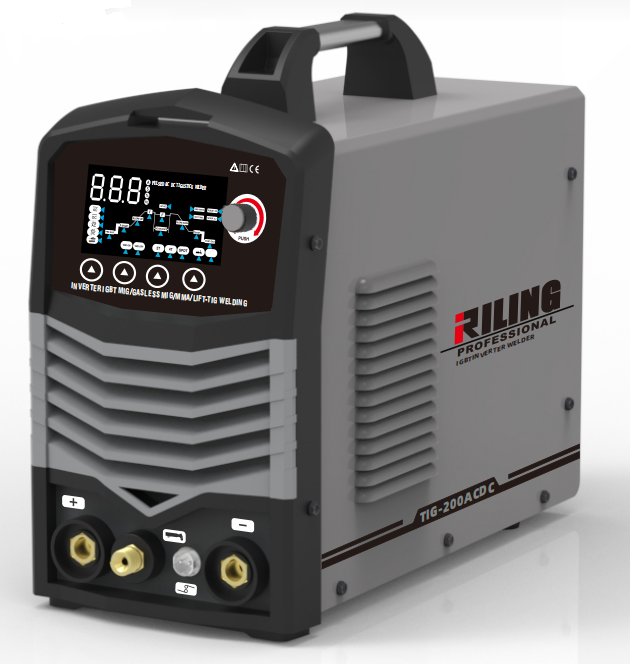

MODEL / ITEM	TIG-200ACDC	TIG-250ACDC
Input Voltage(V)	1PH220V	1PH220V
Frequencu(Hz)	50/60	50/60
Rated Input Capacity(KVA)	7.2	9
NO-load Voltage(V)	56	56
Current Range(A)	20-200	20-250
Rated Duty Cycle(%)	60	60
Usable Electrode(mm)	1.6-3.2	1.6-3.2
Insulation Class	F	F
Efficiency(%)	85	85
Power Factor	Cosφ0.93	Cosφ0.93
Proterction Degree	IP21S	IP21S
Dimension(mm)	455x195x375	455x195x375
Weight(kg)	13	14

dc TIG Welding Machine AC/DC Tig Welding TIG Welding Machine AC DC Stick Welding Machines for Professional Use AC/DC TIG WELDING MACHINE AC/DC IGBT WELDING MACHINE INVERTER TIG/MMA AC/DC INVERTER IGBT WELDING MACHINE TIG/MMA AC/DC TIG/MMA INVERTER WELDING MACHINE IGBT AC/DC TIG/MMA WELDING MACHINE IGBT INVERTER
