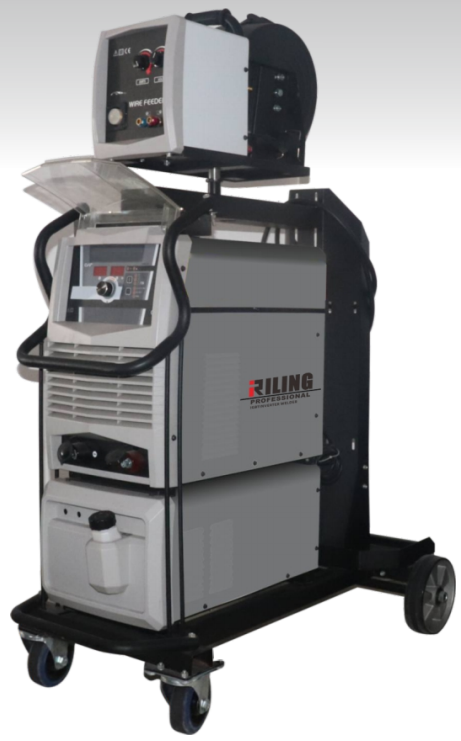

INVERTER IGBT MIG/MAG AND MMA WELDING MACHINE

FEATURES:
1.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
2.Inverter technique makes the welder run in high utilization rate of power.
3.Suitable for gas MIG/MAG,and flux(gasless) welding wire, suitable for welding of low carbon steeljow allow steel, stainless steel and so on.
4.With Single and double pulse function as well as the professional data,can weld all kinds of metelsjt is the most advanced MIG/MAG welding machine.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ACCESSORIES:

MODEL/ITEM

PMIG-270P

PMIG-350P

PMIG-500P

Input Voltage(V)

3PH380V

3PH380V

3PH380V

Frequencu(Hz)

50/60

50/60

50/60

NO-load Voltage(V)

27.5

62.0

68.0

Rated Input Capacity(KVA)

9.4

14.2

23.8

Current Range(A)

50-270

50-350

50-500

Rated Duty Cycle(%)

60

60

60

Welding wire(mm)

0.8-1.0

0.8-1.2

0.8-1.6

Insulation Class

H

H

H

Proterction Degree

IP21S

IP21S

Ip21

Dimension(mm)

1140x655x1530

1140x655x1530

1140x655xl530S

Weight(kg)

76

160

170
