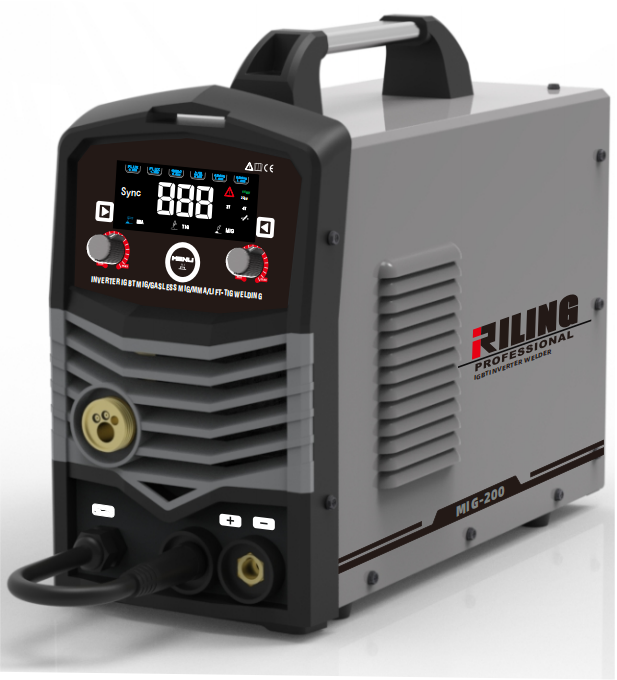

INVERTER IGBT MIG WELDING MACHINE

FEATURES:

1.MuIti-functions in 1 machine:Solid MIG,fLUX MIG,LIFT TIG,MMA and Plasma CUT.
2.SYN technical,Suitable for beginners.
3.HF Powerful Cutting Effect, Up to 40A-50A output.
4.Advanced LED panel provides welding data display and helps you read it clearly.
5.Weld 0.8mm solid core wire and 1.0mm flux core wire continously.
6.Can work with 5kg solid wire or flux core wire.
7.Max weld steel up to 8mm plate.
8.MAX cutting steel up to 12mm plate.

Model:
MIG-200

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

e8c2fc3f-65e8-4601-a807-aafa308ebefa

MODEL/ITEM	MIG-160	MIG-180	MIG-200
Input Voltage(V)	1PH220V	1PH220V	1PH220V
Frequency(Hz)	50/60	50/60	50/60
NO-load Voltage(V)	62	62	62
Rated Input Capacity(KVA)	6.6	6.9	7.2
Current Range(A)	MMA/MIG/TIG:160 CUT:40	MMA/MIG/TIG:180 CUT:40	MMA/MIG/TIG:200 CUT:40
Rated Duty Cycle(%)	40	40	40
Welding wire(mm)	0.6-0.8-1.0	0.6-0.8-1.0	0.6-0.8-1.0
Insulation Class	H	H	H
Proterction Degree	IP21S	IP21S	IP21S
Dimension(mm)	470X210X340	470X210X340	470X210X340
Weight(kg)	8.5	9	9.4
