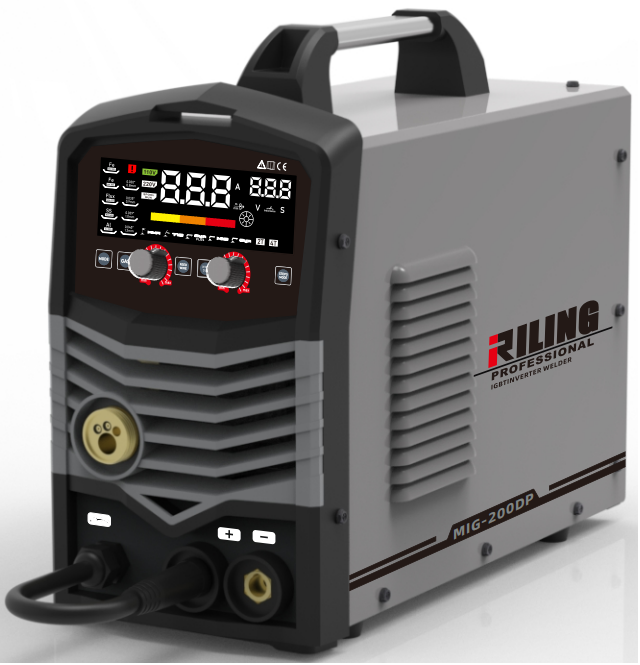

INVERTER IGBT MIG WELDING MACHINE

FEATURES:

1.Multi-functions in 1 machine:Pulse MIG,Solid MIG,fLUX MIG ,LIFT TIG and MMA.(Contains short circuit Aluminum and Stainless steel function ).
2.SYN technical,Suitable for beginners.
3.Manual MIG,Suitable for professionals.
4.2T/4T, Inductance can be available in MIG mode.
5.Advanced colorful LED panel provides welding data display and helps you read it clearly.
6.Weld 0.8mm/1.0mm/ 1.2 solid core wire/1.0mm flux core wire continously .
7.Can work with 5kg solid wire or flux core wire.
8.Apply to Spool gun weld.
9.Max weld steel up to 8mm plate.

Model:
MIG-200DP

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

6eb196a7-746d-4186-8675-2a839e9b22b5

MODEL/ITEM	MIG-160CI	MIG-180CI	MIG-200CI
Input Voltage(V)	1PH220V	1PH220V	1PH220V
Frequency(Hz)	50/60	50/60	50/60
NO-load Voltage(V)	62	62	62
Rated Input Capacity(KVA)	6.6	6.9	7.2
Current Range(A)	MIG:20-160 MMA:20-140	MIG:20-180 MMA:20-160	MIG:20-200 MMA:20-180
Rated Duty Cycle(%)	40	40	40
Welding wire(mm)	0.6-0.8-1.0	0.6-0.8-1.0	0.6-0.8-1.0
Insulation Class	H	H	H
Proterction Degree	IP21S	IP21S	IP21S
Dimension(mm)	470X210X340	470X210X340	470X210X340
Weight(kg)	8.5	9	9.4
