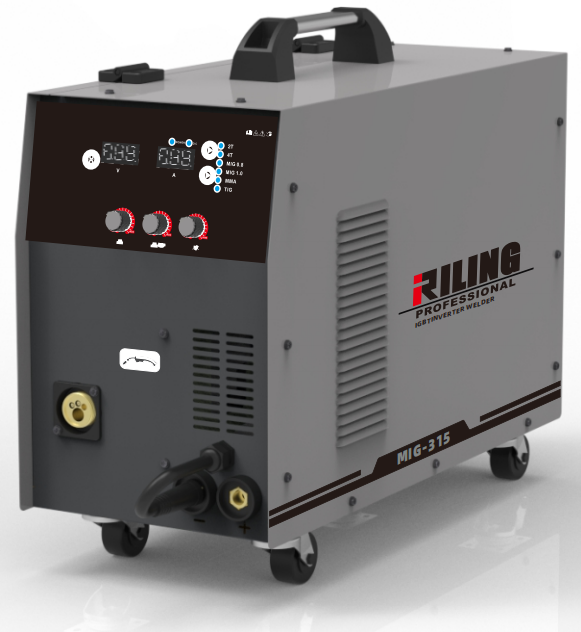

INVERTER IGBT MIG WELDING MACHINE

FEATURES:

1.Multi-functions in 1 machine:Solid MIG,LIFT-TIG and MMA.(Contains short circuit Aluminum and Stainlesss teel function).
2.2T/4T and Inductance can be available in MIG mode.
3.Weld 0.8mm/1.0mm solid core wire/0.8mm/1.0mm flux core wire continously．
4.Can work with 5kg-15kg solid wire.
5.Max weld steel up to 12mm plate.

Model:
MIG-315

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

e8c2fc3f-65e8-4601-a807-aafa308ebefa

MODEL/ITEM	MIG-250	MIG-315
Input Voltage(V)	1PH220V/380V	1PH220V/380V
Frequency(Hz)	50/60	50/60
NO-load Voltage(V)	65	65
Rated Input Capacity(KVA)	8.6	12.8
Current Range(A)	250	315
Rated Duty Cycle(%)	40	40
Welding wire(mm)	0.8/1.0	0.8/1.0
Insulation Class	F	F
Proterction Degree	IP21S	IP21S
Dimension(mm)	710X365X545	710X365X545
Weight(kg)	18	22.2
