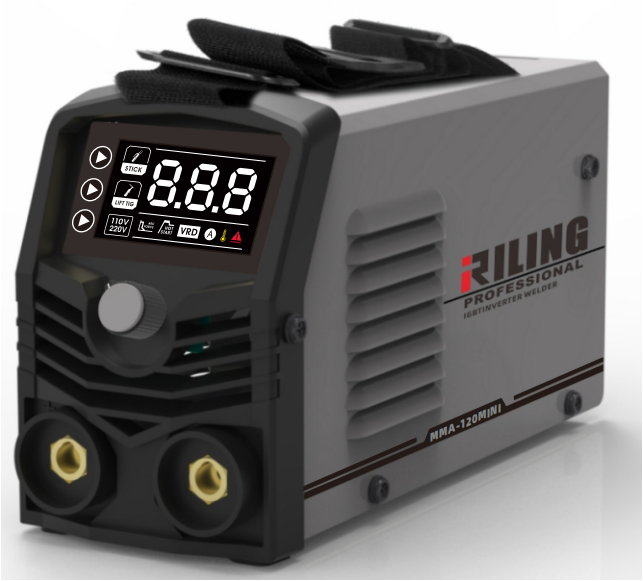

INVERTER IGBT MMA WELDING MACHINE MMA-120MINI

FEATURES:
1.This machine is colour display screen
2.This machine is digital technology includes HOT START、ARC FORCE、LIFT-TIG、VRD function
3.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
4.Inverter technique makes the welder run in high utilization rate of power.
5.Low open circuit and has good welding quality.
6.Suitable for MMA welding of low carbon steel and low alloy steel with all kinds of welding rods.

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES：

MODEL / ITEM	MMA-100MINI	MMA-120MINI	MMA-140MINI
Input Voltage(V)	1PH220V	1PH220V	1PH220V
Frequency(Hz)	50/60	50/60	50/60
Rated Input Capacity(KVA)	3.0	3.8	4.5
Power Factor	Cosφ0.93	Cosφ0.93	Cosφ0.93
Max NO-load Voltage(V)	65	65	65
Current Range(A)	20-100	20-120	20-140
Rated Duty Cycle(%)	100	80	60
Usable Electrode(mm)	1.6-2.5	1.6-3.2	1.6-4.0
Insulation Class	H	H	H
Proterction Degree	IP21S	IP21S	IP21S
Dimension(mm)	325x140x260	325x140x260	325x140x260
Weight(kg)	4.6	4.6	5.2
