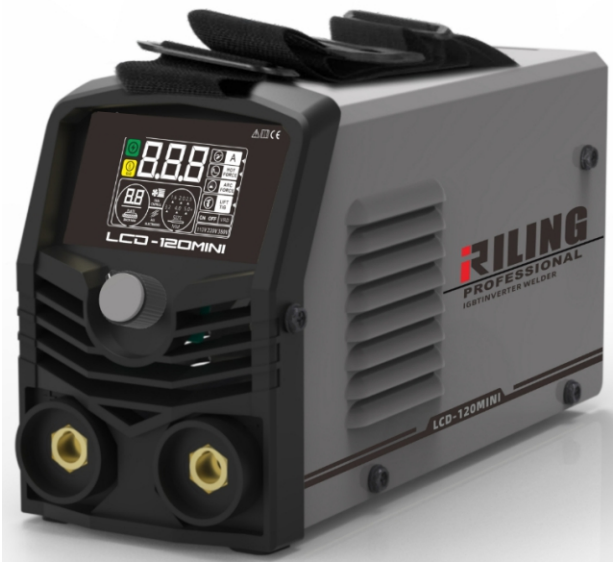

INVERTER IGBT MMA WELDING MACHINE

FEATURES:
1.Inverter IGBT technique makes the welder more strong, with compact size but much high duty cycle.
2.Inverter technique makes the welder run in high utilization rate of power.
3.Low open circuit and has good welding quality.
4.Suitable for MMA welding of low carbon steel and low alloy steel with all kinds of welding rods.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ACCESSORIES:



MODEL / ITEM

LCD-100MINI

LCD-120MINI

LCD-140MINI

Input Voltage(V)

1PH220V

1PH220V

1PH220V

Frequencu(Hz)

50/60

50/60

50/60

Rated Input Capacity(KVA)

3.0

3.8

4.5

Power Factor

Cosφ0.93

Cosφ0.93

Cosφ0.93

Max NO-load Voltage(V)

65

65

65

Current Range(A)

20-100

20-120

20-140

Rated Duty Cycle(%)

40

60

40

Usable Electrode(mm)

1.6-2.5

1.6-3.2

1.6-4.0

Insulation Class

H

H

H

Proterction Degree

IP21S

IP21S

IP21S

Dimension(mm)

235x95x130

235x95x130

235x95x130

Weight(kg)

3.2

3.2

3.2
