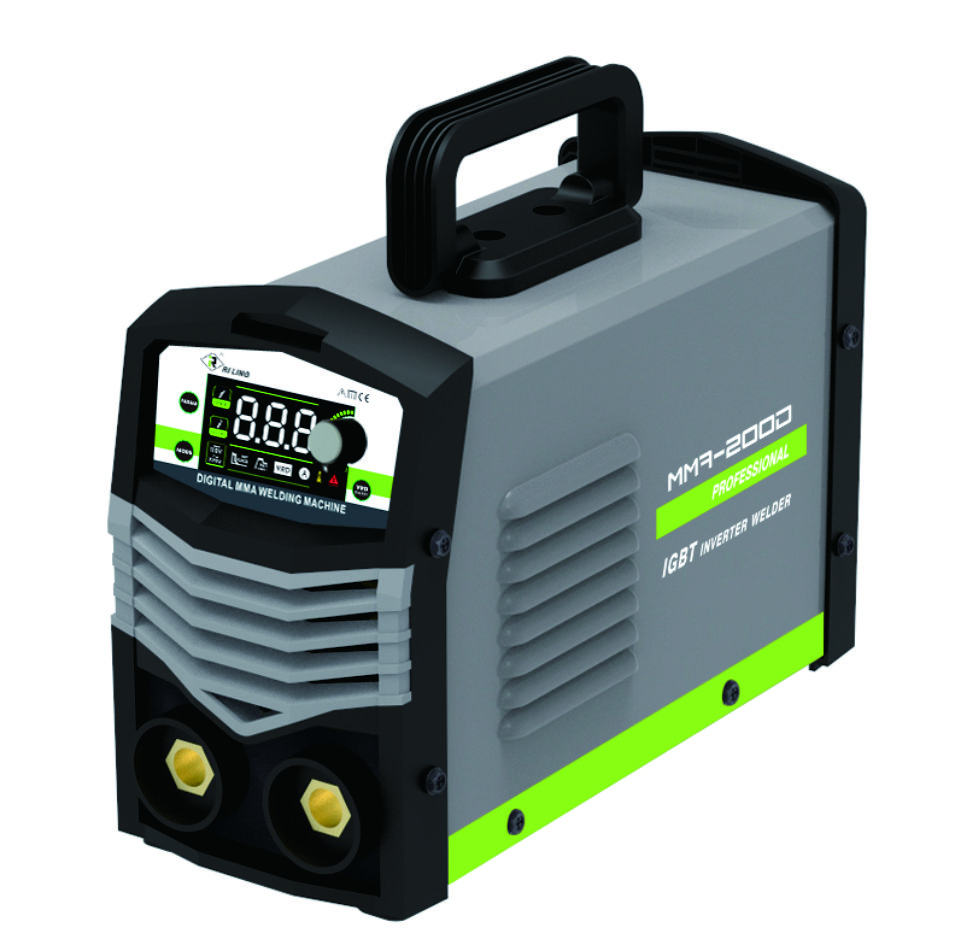

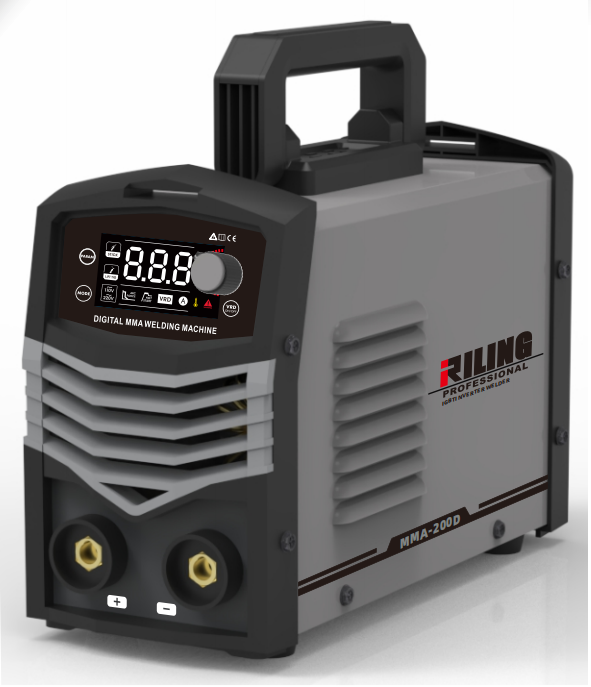

INVERTER IGBT MMA WELDING MACHINE

1.This machine is color display screen
2.This machine is digital technology includes HOT STARTARC FORCELIFT-TIGVRD function

3.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
4.Inverter technique makes the welder run in high utilization rate of power.
5.Low open circuit and has good welding quality.
6.Suitable for MMA welding of low carbon steel and low alloy steel with all kinds of welding rods.

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

MODEL / ITEM	MMA-100D	MMA-120D	MMA-140D	MMA-160D	MMA-180D	MMA-200D	MMA-200D	MMA-250D
Input Voltage(V)	1PH220V	1PH220V	1PH220V	1PH220V	1PH220V	1PH220V	3PH380V	3PH380V
Frequencu(Hz)	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Rated Input Capacity(KVA)	3.0	3.8	4.5	5.3	6.2	7.1	7.1	9.5
Power Factor	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93
Max NO-load Voltage(V)	65	65	65	65	65	65	65	65
Current Range(A)	20-100	20-120	20-140	20-160	20-180	20-200	20-200	20-250
Rated Duty Cycle(%)	100	80	60	40	40	30	60	60
Usable Electrode(mm)	1.6-2.5	1.6-3.2	1.6-4.0	1.6-4.0	1.6-4.0	1.6-4.0	1.6-4.0	1.6-5.0
Insulation Class	H	H	H	H	H	H	H	H
Proterction Degree	IP21S	IP21S	IP21S	IP21S	IP21S	IP21S	IP21S	IP21S
Dimension(mm)	325X140X260	325X140X260	325X140X260	325X140X260	325X140X260	325X140X260	390X160X320	390X160X320
Weight(kg)	4.6	4.6	5.2	5.2	5.5	5.5	8.8	9
