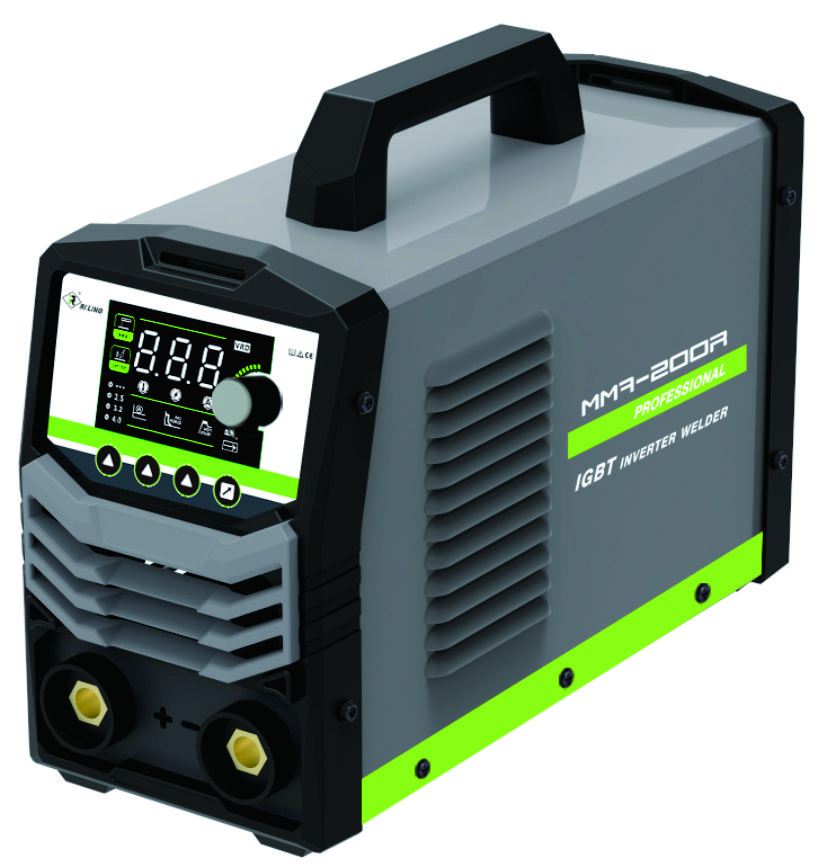

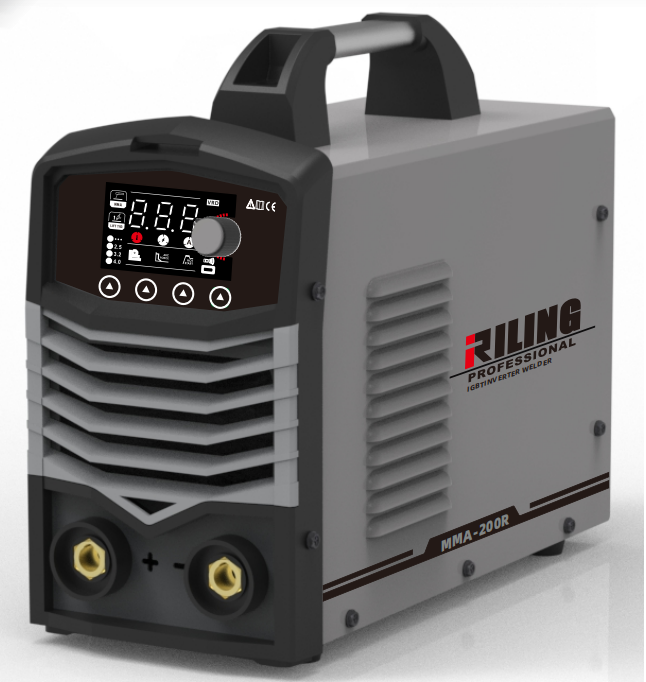

INVERTER IGBT MMA WELDING MACHINE（remote-controlled）

1.This machine is color display screen
2.This machine is digital technology includes HOT STARTARC FORCELIFT-TIGVRD function and support wireless remote control function, can remotely control the machine output current.
3.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
4.Inverter technique makes the welder run in high utilization rate of power.
5.Low open circuit and has good welding quality.
6.Suitable for MMA welding of low carbon steel and low alloy steel with all kinds of welding rods.

Quantity:
Availability:





Inquire

Product Description

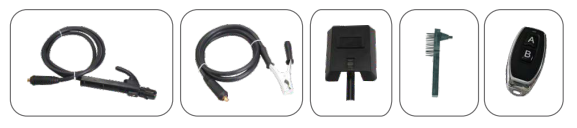

ACCESSORIES:

正在上传... 1746604386003

MODEL / ITEM	MMA-160R	MMA-180R	MMA-200R	MMA-220R
Input Voltage(V)	1PH220V	1PH220V	1PH220V	3PH380V
Frequencu(Hz)	50/60	50/60	50/60	50/60
Rated Input Capacity(KVA)	5.3	6.2	7.1	8.0
Power Factor	Cosφ0.93	Cosφ0.93	Cosφ0.93	Cosφ0.93
Max NO-load Voltage(V)	65	65	65	65
Current Range(A)	20-160	20-180	20-200	20-200
Rated Duty Cycle(%)	30	30	30	30
Usable Electrode(mm)	1.6-4.0	1.6-4.0	1.6-4.0	1.6-4.0
Insulation Class	H	H	H	H
Proterction Degree	IP21S	IP21S	IP21S	IP21S
Dimension(mm)	385X158X272	385X158X272	385X158X272	385X158X272
Weight(kg)	7	8.6	8.6	8.8

MMA Welding Machine Welding Machine Protable Welding Machine Inverter Mma Welding Machine Protable Inverter Mma Welding Machine
