When it comes to metal fabrication and industrial joining processes, few tools are as critical as the welding machine. These machines enable the fusion of metals using intense heat, creating strong, permanent bonds. However, the effectiveness, safety, and quality of your welds rely heavily on correctly configuring welding machine settings. Misadjustments can lead to weak joints, excessive spatter, overheating, or even equipment damage.
So, which of the following is true of welding machine settings? To answer this question thoroughly, we must explore the components of welding settings, their effects on welding results, and how to optimize them based on materials, processes, and environmental factors.

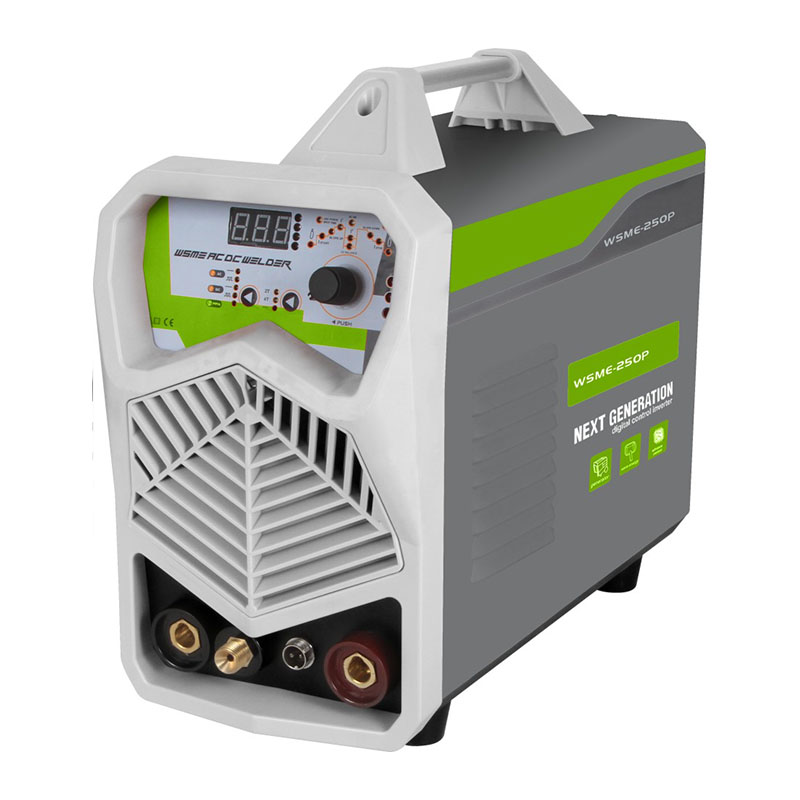

Correctly setting a welding machine means fine-tuning several critical parameters, each of which directly affects weld quality. These include voltage, current (amperage), wire feed speed, travel speed, and shielding gas flow rate.
Voltage controls the arc length in MIG and TIG welding. Too much voltage can cause a wide, flat weld bead and excessive spatter. Too little leads to poor penetration and a narrow, rope-like bead.
Amperage, especially in Stick (SMAW) or TIG welding, regulates heat input. High amperage penetrates deeply, which is ideal for thicker metals. Low amperage reduces heat and is more suitable for thinner materials.
| Material Thickness | Recommended Amperage Range |
|---|---|
| 1/8 inch (3.2 mm) | 90–120 A |
| 1/4 inch (6.4 mm) | 140–180 A |
| 3/8 inch (9.5 mm) | 180–220 A |
Getting these right ensures optimal penetration and reduces the risk of burn-through or weak joints.
In MIG welding, wire feed speed (WFS) directly affects current. Too fast and the wire will stub into the workpiece; too slow and the arc becomes unstable. Travel speed refers to how fast you move the torch across the joint. Moving too fast results in narrow, underfilled beads. Moving too slowly can lead to excessive buildup and burn-through.
Using the right shielding gas protects the molten weld pool from atmospheric contamination. For instance:
MIG welding mild steel: Argon-CO₂ mix (commonly 75/25)
Stainless steel MIG welding: Trimix gases (Argon + CO₂ + O₂ or Helium)
TIG welding aluminum: Pure Argon
Flow rates typically range between 20–30 CFH (cubic feet per hour). Incorrect flow can lead to porosity or oxidation.

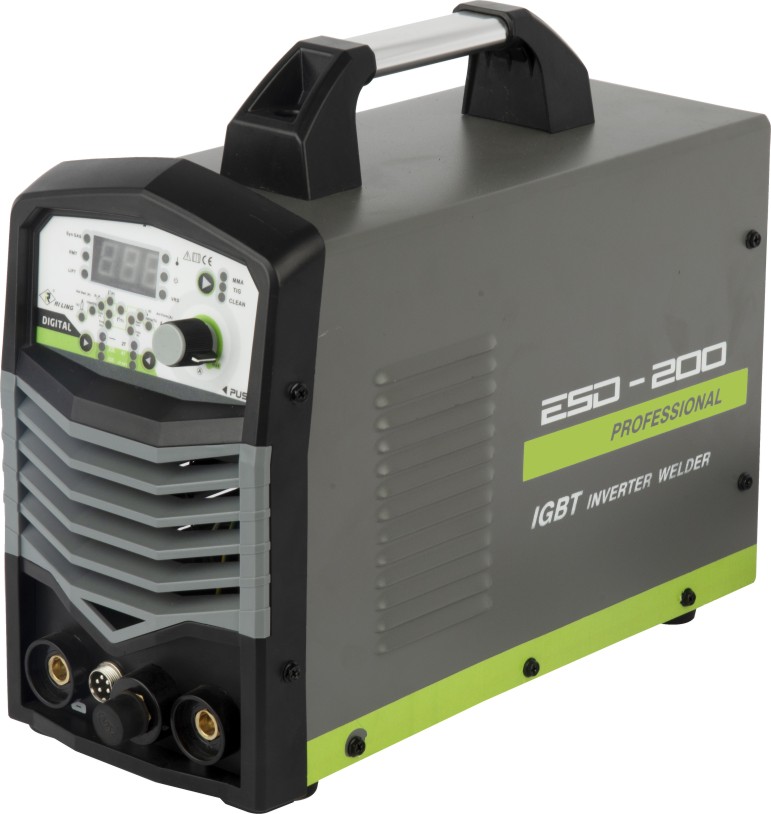

In welding machines, Direct Current Electrode Positive (DCEP) is standard for MIG and Stick welding, providing deeper penetration. For TIG welding aluminum, AC (alternating current) is typically used due to its cleaning action.
| Process | Electrode Polarity |
|---|---|
| MIG (GMAW) | DCEP |
| TIG (Aluminum) | AC |
| Stick (SMAW) | DCEP or DCEN (depends) |
Knowing which polarity to use is critical to both performance and safety.
Let’s tackle some frequently asked questions that arise when configuring welding machines:
Look for consistent arc behavior, smooth bead appearance, and minimal spatter. You can also perform a bend test or x-ray inspection to validate weld integrity.
Yes. Overhead or vertical welds require lower amperage and different techniques than flat welds. Gravity affects the flow of molten metal, demanding more precise control.
Absolutely. For instance:
MIG welding needs voltage and wire speed tuning.
TIG welding focuses more on amperage and shielding gas purity.
Stick welding involves electrode type, amperage, and arc length.
Now we return to our central question. Among common statements, only those backed by metallurgical principles and safety standards are considered true. Here are several key truths:
Each metal behaves differently under heat. Aluminum requires high-frequency AC TIG, while stainless steel needs low heat input and excellent shielding. Settings that are too generic often fail.
Improper voltage or amperage causes weak penetration, lack of fusion, and cracking under stress. In industries like aerospace or shipbuilding, this could be catastrophic.
Many modern welding machines come with preset modes, but they can't substitute for operator judgment. Manual fine-tuning is still essential.
Even seasoned professionals occasionally overlook the importance of tuning their machines correctly. Below are some expert-recommended strategies to help you avoid errors:
Most machines include a reference chart based on wire type, gas mix, and material thickness. Use it as a baseline, then adjust based on real-world weld behavior.
Before working on the final joint, test your settings on a similar piece of scrap metal. This allows you to assess arc stability, bead shape, and penetration.
A clean and calibrated machine ensures settings remain consistent. Dirty connections, clogged gas nozzles, or worn cables can distort actual output, leading to poor welds even with correct settings.
To summarize, understanding and properly adjusting welding machine settings is not just a technical detail—it is the cornerstone of successful welding operations. The answer to “which of the following is true of welding machine settings” lies in knowing that every variable matters, and precision is non-negotiable.
Whether you're working on a DIY project or a high-stakes industrial pipeline, your welds are only as good as the settings you use. Don’t rely on assumptions—test, observe, and fine-tune. Welding is equal parts science and art, and the settings on your machine are where the two meet.
