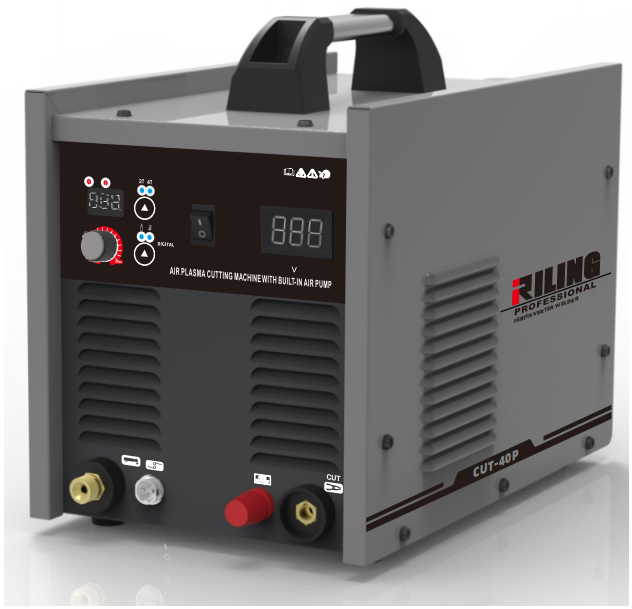

INVERTER IGBT PLASMA CUTTING MACHINE CUT-40P

FEATURES:

1.This machine is DIGITAL Built-in air pump air Plasma cutter no external air source.With MMA welding function.
2.This machine is digital technology Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle and has 2T/4T function.
3.Inverter technique makes the welder run in high utilization rate of power.
4.Suitable for cutting the stainless steel,carbon steel,aluminum,copper,composite plate and so on.
5.High cutting speed,narrow cutting gap,smoothy kerf and high precision.

Model:
CUT-40P

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

MODEL/ITEM	CUT-40P	CUT-50P
Input Voltage(V)	1PH220V	1PH220V
Frequency(Hz)	50/60	50/60
Rated Input Capacity(KVA)	6.6	7.4
Power Factor	Cosφ0.93	Cosφ0.93
Efficiency(%)	80	80
NO-load Voltage(V)	250	265
Current Range(A)	20-40	20-50
Rated Duty Cycle(%)	40	40
Cutting Thickness(mm)	1-12	1-15
Insulation Class	F	F
Proterction Degree	IP21S	IP21S
Dimension(mm)	475x220x375	475x220x375
Weight(kg)	10.5	11

Plasma Cutting Machine CUT-40P Automatic Plasma Cutting Machine China Automatic Plasma Cutting Machine Company Plasma Cutting Machine Supplier Metal Plasma Cutting Machine Automotive Industry Plasma Cutting Machine
