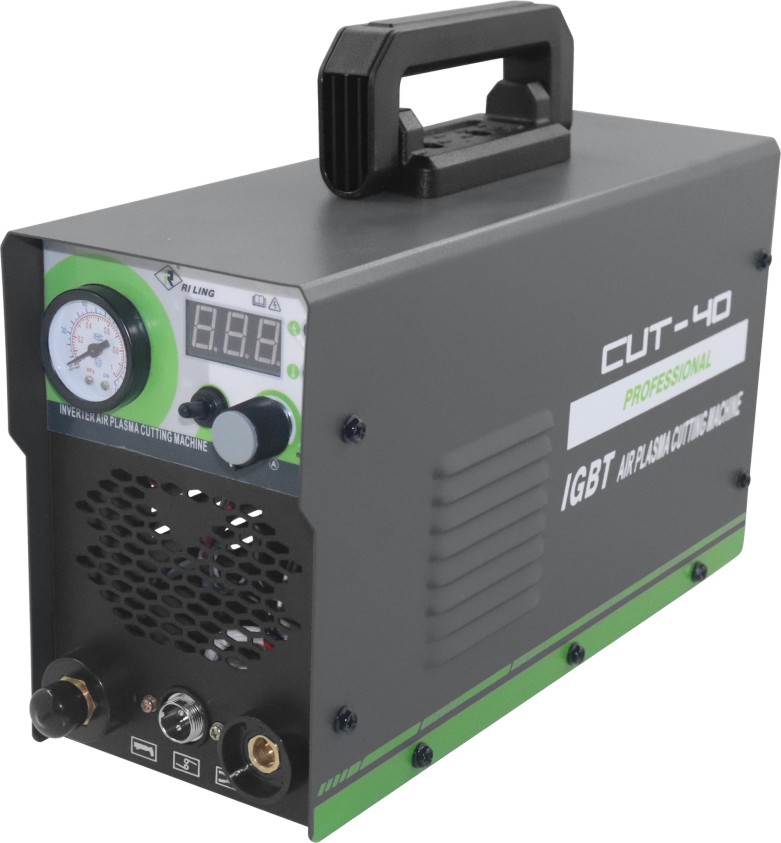

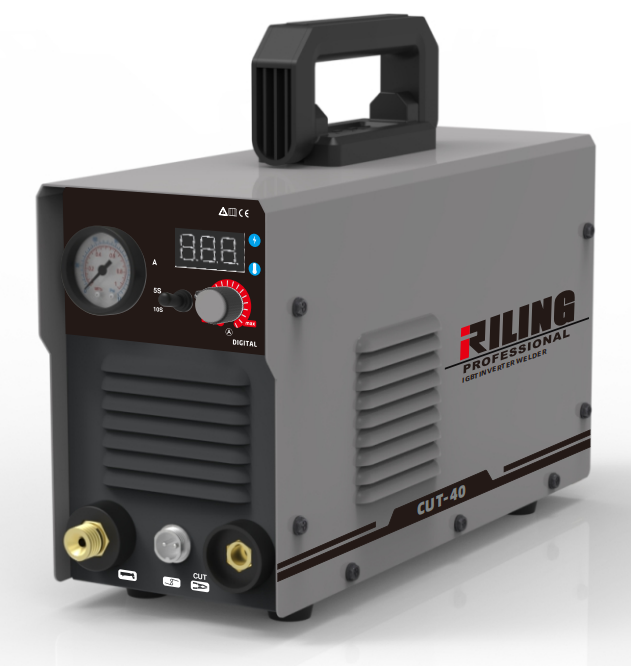

INVERTER IGBT PLASMA CUTTING MACHINE

1.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
2.Inverter technique makes the welder run in high utilization rate of power.
3.Suitable for cutting the stainless steel,carbon steel,aluminum,copper,composite plate and so on.
4.High cutting speed,narrow cutting gap,smoothy kerf and high precision.

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

MODEL/ITEM	CUT-40	CUT-50
Input Voltage(V)	1PH220V	1PH220V
Frequencu(Hz)	50/60	50/60
Rated Input Capacity(KVA)	6.6	7.4
Power Factor	Cosφ0.93	Cosφ0.93
Efficiency(%)	80	80
NO-load Voltage(V)	250	265
Current Range(A)	20-40	20-50
Rated Duty Cycle(%)	40	40
Cutting Thickness(mm)	1-12	1-15
Insulation Class	F	F
Proterction Degree	IP21S	IP21S
Dimension(mm)	475x220x375	475x220x375
Weight(kg)	10.5	11
