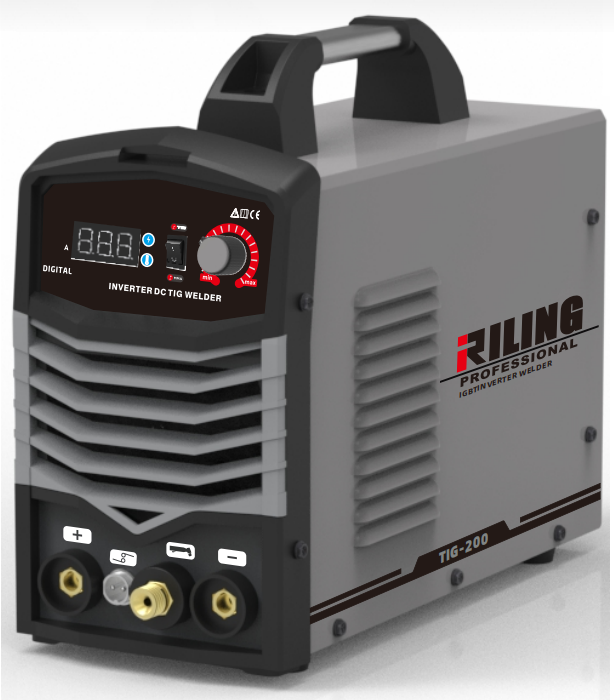

Tig Welding Machine TIG-200

FEATURES:
1.Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle.
2.Inverter technique makes the welder run in high utilization rate of power.
3.Adopt touch arc introduce technology,free from disturb of magnet,compliance with the EMC standard.
4.Suitable for MMA welding of low carbon steel and low alloy steel with all kinds of welding rods and also suitable for the TIG argon welding stainless steel.

Model:
TIG-200

Quantity:
Availability:





Inquire

Product Description

ACCESSORIES:

74235c1d-b035-4631-aed2-98b69bd36ad6

MODEL / ITEM	TIG-160	TIG-180	TIG-200
Input Voltage(V)	1PH220V	1PH220V	1PH220V
Frequencu(Hz)	50/60	50/60	50/60
Rated Input Capacity(KVA)	5.8	6.5	7.2
NO-load Voltage(V)	60	60	60
Current Range(A)	10-160	10-180	10-200
Rated Duty Cycle(%)	60	60	60
Usable Electrode(mm)	1.6-2.4	1.6-3.2	1.6-3.2
Insulation Class	F	F	F
Efficiency(%)	85	85	85
Power Factor	Cosφ0.93	Cosφ0.93	Cosφ0.93
Proterction Degree	IP21S	IP21S	IP21S
Dimension(mm)	365x160x305	365x160x305	365x160x305
Weight(kg)	6	6.4	7
